Henan Tianfon New Energy Tech. Co., Ltd.
7 Years
| Ask Lasest Price | |
| Brand Name : | TIANFON |
| Model Number : | Ground Screw Piles |
| Certification : | SGS,ISO 9001,ISO 14001,OHSAS 18000 |
| Price : | USD800-2000/set |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 30MW/month |
| Delivery Time : | 15-25 work days |

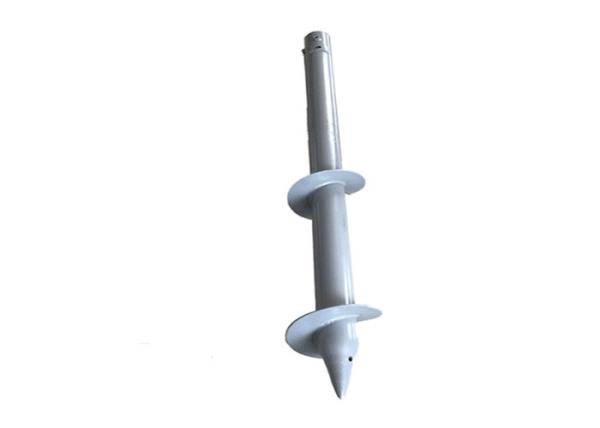

Customize Design Ground Mounting Pile Driving Rack Foundation Solutions
Ground Screw Piles is the preferred foundation in many applications, such as Photovoltaic Solar Farm construction, Timber-frame Housing, Timber Decking, Street Light and Fence construction, Temporary Site Accommodation, Bill Board/Advertising Signs and many more applications.
Features
Can be removed for temporary applications
Are easily transported to remote sites
Torque is a strong verification of capacity
Can be installed through ground water without casing
Typically required less time to install
Can be installed at a better angle for added laterial risistance
Can be installed with smaller more accessible equipment
Are installed with low noise and minimal vibrations
Can be grouted in place after installation
Can be galvanized for corrosion resistance
Eliminate concrete curing and formwork
Do not produce drill spoil
Minimize disturbance to environmentally sensitive sites
Reduce the number of truck trips to a site
Are cost effective
Name | Size(mm) | Thickness(mm) | Material | Surface treatment | Photo |
Piles with flange | φ 76/89,1000-2000mm(Length) | 4 | Q235B | Hot-Dip Galvanizing |
|
Piles without flange | φ 76/89,1000-2000mm(Length) | 4 | Q235B | Hot-Dip Galvanizing |
|
Steel pipe piles | φ 76/89,1000-2000mm(Length) | 4 | Q236B | Hot-Dip Galvanizing |
|
Products can be customized according to customer requirement.
|
|
