High Quality Ground Screw Pile PV Solar Panel Aluminum Support Frame Ground Mount
The ground screw & anchor are designed and engineered for each customer's site specific conditions to minimize the field installation labor and require no field welding, drilling, or other on-site fabrication.
It is the intelligent alternative fixing method for all types of installations requiring a solid footing. Tests conducted in different consistency soil showed a clear advantage in all aspects, from wind loads and lateral pull, to horizontal load and lift, compared to concrete footings which are held in the ground mostly by their own weight.
Quick details:
• Install site: All types of Soil
• Pipe Material: Steel Q235B
• Pipe Diameters: 76 mm~200 mm
• Pipe Length: 500~2500 mm
• Pipe Thickness: 3~3.5mm
• Anticorrosive:High class hot dip galvanized
• Warranty: 10 years warranty
• Duration:More than 20 years
Advantages:
A. Compatibility With All Type Of Structures
B. Foundation Solution Concrete Free.
C. Surrounding Areas Remains Unspoiled.
D. Easy Remove Simple And Easy To Relocate.
Name | Size(mm) | Thickness(mm) | Material | Surface treatment | Photo |

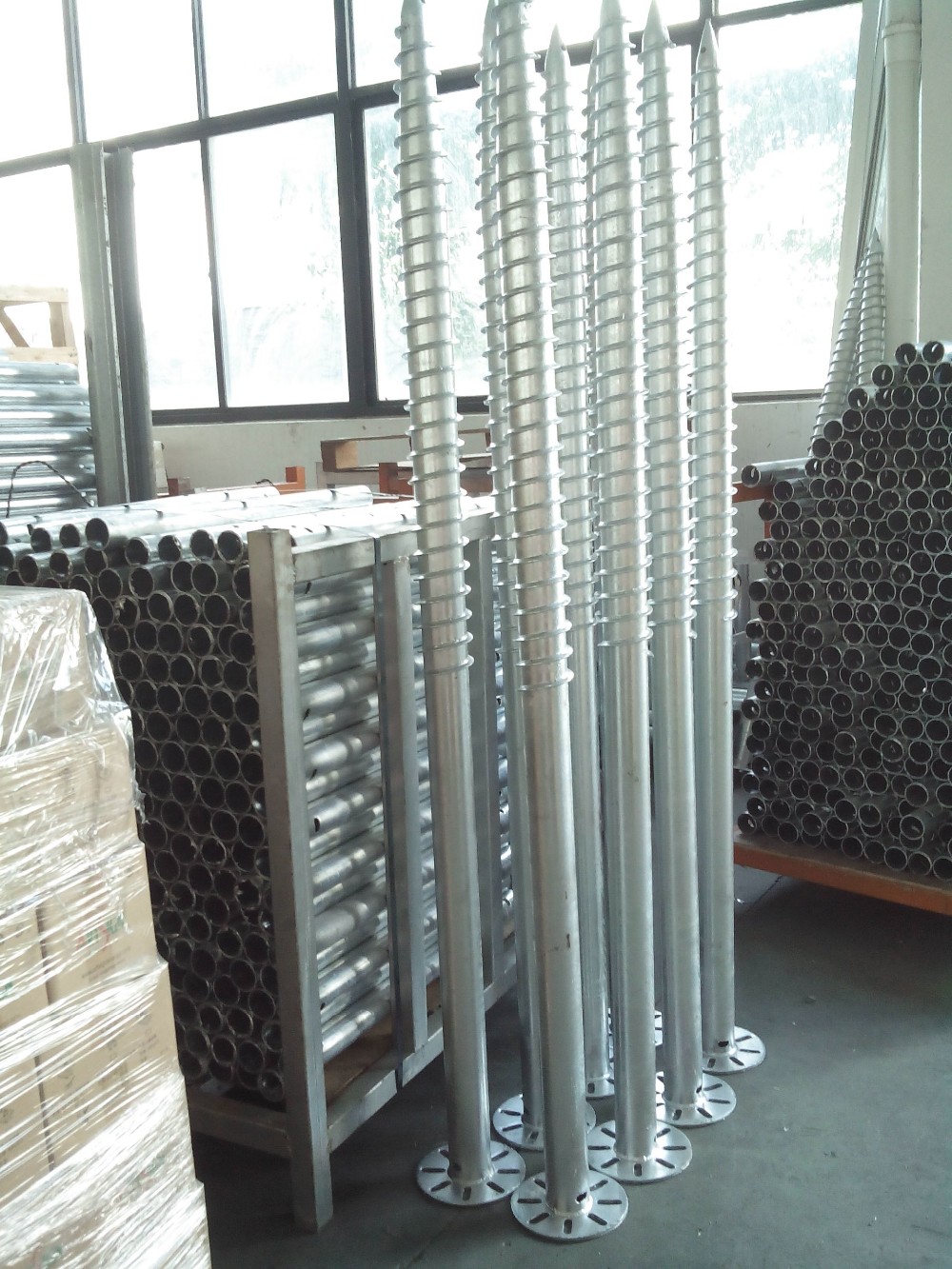

Piles with flange | φ 76/89,1000-2000mm(Length) | 4 | Q235B | Hot-Dip Galvanizing |
|
Piles without flange | φ 76/89,1000-2000mm(Length) | 4 | Q235B | Hot-Dip Galvanizing |
|
Steel pipe piles | φ 76/89,1000-2000mm(Length) | 4 | Q236B | Hot-Dip Galvanizing |
|
Products can be customized according to customer requirement.
|
|
