Henan Tianfon New Energy Tech. Co., Ltd.
7 Years
| Ask Lasest Price | |
| Brand Name : | TIANFON |
| Model Number : | Solar Panels |
| Certification : | TUV,SGS,CE, ISO 9001,ISO 14001,OHSAS 18001 |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 1000 Watt/Watts |
| Price : | USD0.19-0.22/W |
CHNT 525WP 530WP 535WP 540WP 545WP monocrystalline PV module high power 182 F-BH series solar panels
In the field of photovoltaic, we are not only ranked top in the production, but also lead front in the innovation.
525W-545w monocrystalline PV module, CHSM 72m(DG)/F-BH 182 series, the newest feature is creat sustainalbe and efficient green engergy, with +5W output positive tolerance, this is the advantage beyond over ordinary solar panels. It was spread used to the ground mounting system, roof mounting system, fixed adjustable mounting system, solar thermal mountinig systme, and so on .....
We are offer you competitive price on PV modules, also give you good warranty, 12 years warranty for materials and processing, 30years wattanty for extra linear power output. The following is the details, you may know more clearly.
Specifications:
Power rating(front) | 525 Wp | 530Wp | 535Wp | 540Wp | 545Wp | |||||
Testing condition | Front | Back | Front | Back | Front | Back | Front | Back | Front | Back |
STC rated output (P mpp /Wp) | 525 | 368 | 530 | 371 | 535 | 375 | 540 | 378 | 545 | 382 |
Rated voltage (V mpp /V) at STC | 41.43 | 41.48 | 41.60 | 41.65 | 41.76 | 41.81 | 41.93 | 41.98 | 42.10 | 42.15 |
Rated current (l mpp /A) at STC | 12.67 | 8.87 | 12.74 | 8.92 | 12.81 | 8.97 | 12.88 | 9.01 | 12.95 | 9.06 |
Open circuit voltage (V oc /V) at STC | 49.30 | 49.25 | 49.50 | 49.45 | 49.70 | 49.65 | 49.90 | 49.85 | 50.10 | 50.05 |
Short circuit current (I sc /A) at STC | 13.40 | 9.27 | 13.48 | 9.33 | 13.57 | 9.39 | 13.66 | 9.45 | 13.75 | 9.52 |
Module efficiency | 20.5% | 14.4% | 20.7% | 14.5% | 20.9% | 14.7% | 21.1% | 14.8% | 21.3% | 14.9% |
Temperature coefficient (P mpp ) | - 0.35%/°C | |||||||||
Temperature coefficient (I sc ) | + 0.045%/°C | |||||||||
Temperature coefficient (V oc ) | - 0.27%/°C | |||||||||
Nominal module operating | 41±2°C | |||||||||
Maximum system voltage (IEC/UL) | 1500V DC | |||||||||
Number of diodes | 3 | |||||||||
Junction box IP rating | IP 68 | |||||||||
Maximum series fuse rating | 30 A | |||||||||
Key Features:
► OUTPUT POSITIVE TOLERANCE:
Guaranteed 0~+5W positive tolerance to ensure power output.
►HIGH CUSTOMER VALUE:
Up to 25% additional power gain , lower BOS cost and LCOE.
► SUPER PERC+ CELL TECHNOLOGY:
Higher module power and module efficiency, lower power degradation.
► NON-DESTRUCTIVE CUTTING:
Higher bending strength of cells and mechanical properties of modules.
► INNOVATIONAL HALF-CUT&MULTI-BUSBAR TECHNOLOGY:
Lower risk of microcrack, better shading tolerance, higher reliability.
► APPLICABLE FOR MULTI DIFFERENT ENVIRONMENTS:
Wide range of applications, such as snow areas, high humidity areas and strong sandstorm areas, etc..
Advantages of Solar Energy:
1. The biggest characteristic of solar energy is huge energy, the solar radiation energy reach the earth's surface is about 130 trillion tons of standard coal every year , which is equivalent to 10000 times the total amount of all kinds energy consumed every year in the world.
2. Solar energy is a typical renewable energy, is the safest and most reliable energy.
3. The application of solar energy is not limited by mining, transportation and storage conditions.
4. Solar energy is bound to achieve great economic importance in future because of depletion trend of convention energy sources.

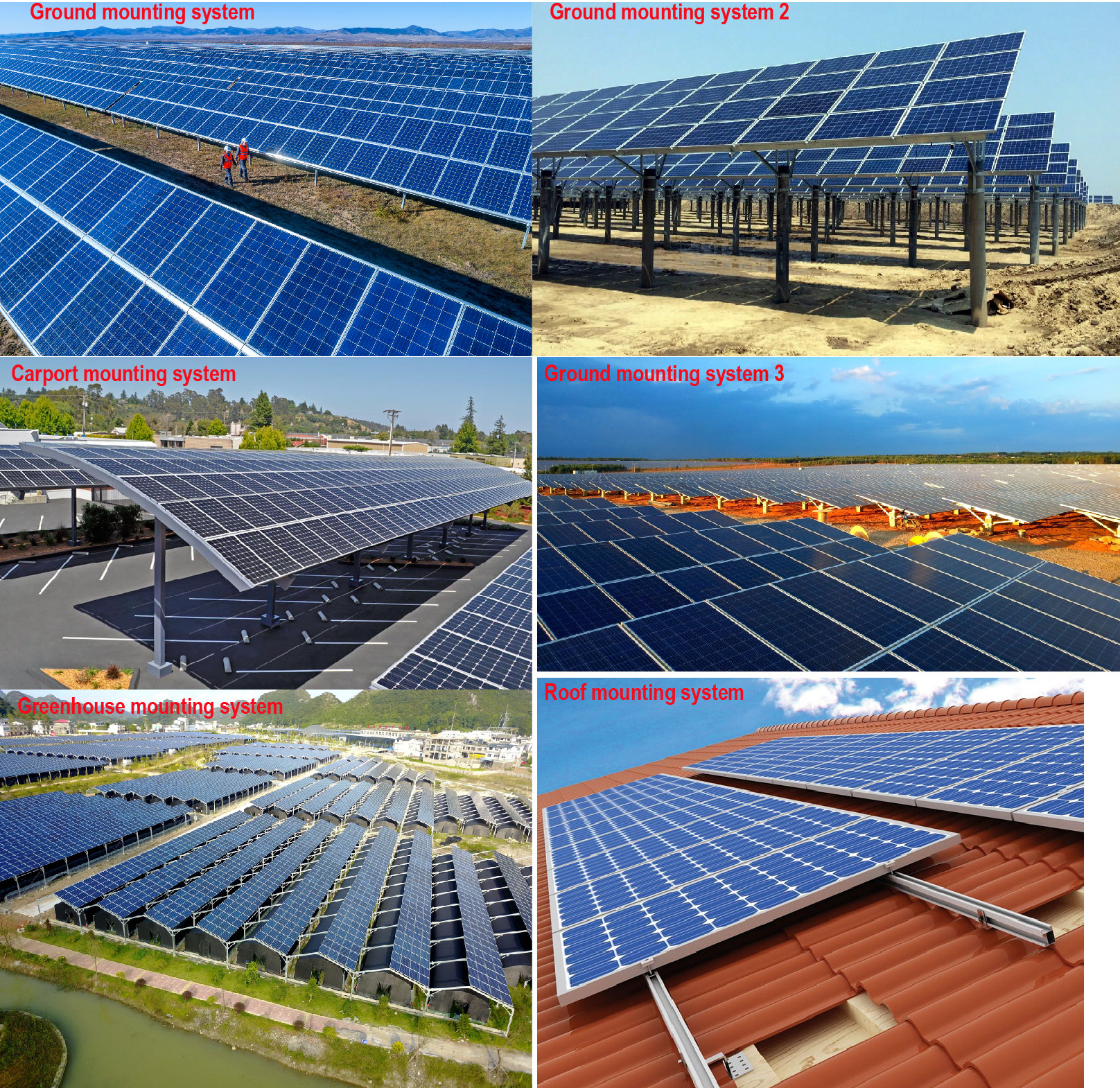

Project Reference:

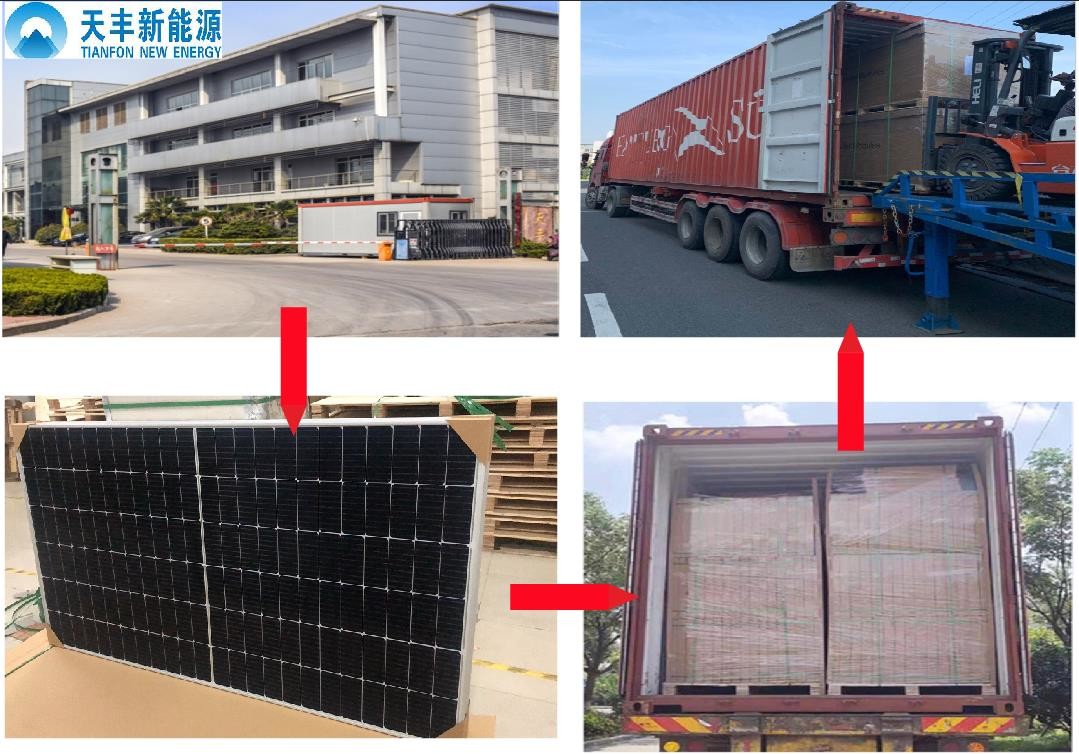

Packaging and delivery:
| Module Weight | 32.3 kg |
| Packing unit | 31 pcs / box |
| Weight of packing unit (for 40‘HQ container) | 1040 kg |
| Number of modules per 40‘HQ container | 620 pcs |
► Package: strong and long distance transportation package
► Place of loading: Basic Seaport, China
► Payment Terms: L/C,D/A,D/P,T/T
► Delivery Detail: Delivery time:7--25 days after receiving customer’s deposits
Our Certificates:
|
|
