Henan Tianfon New Energy Tech. Co., Ltd.
7 Years
| Ask Lasest Price | |
| Brand Name : | TIANFON |
| Model Number : | TF-G025 |
| Certification : | SGS,ISO 9001,ISO 14001,OHSAS 18000,TUV,CE |
| Price : | US $0.05-0.18 / Watts |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 100000 Watt/Watts per Week |
| Delivery Time : | within 15-25 work days after receipt deposit |

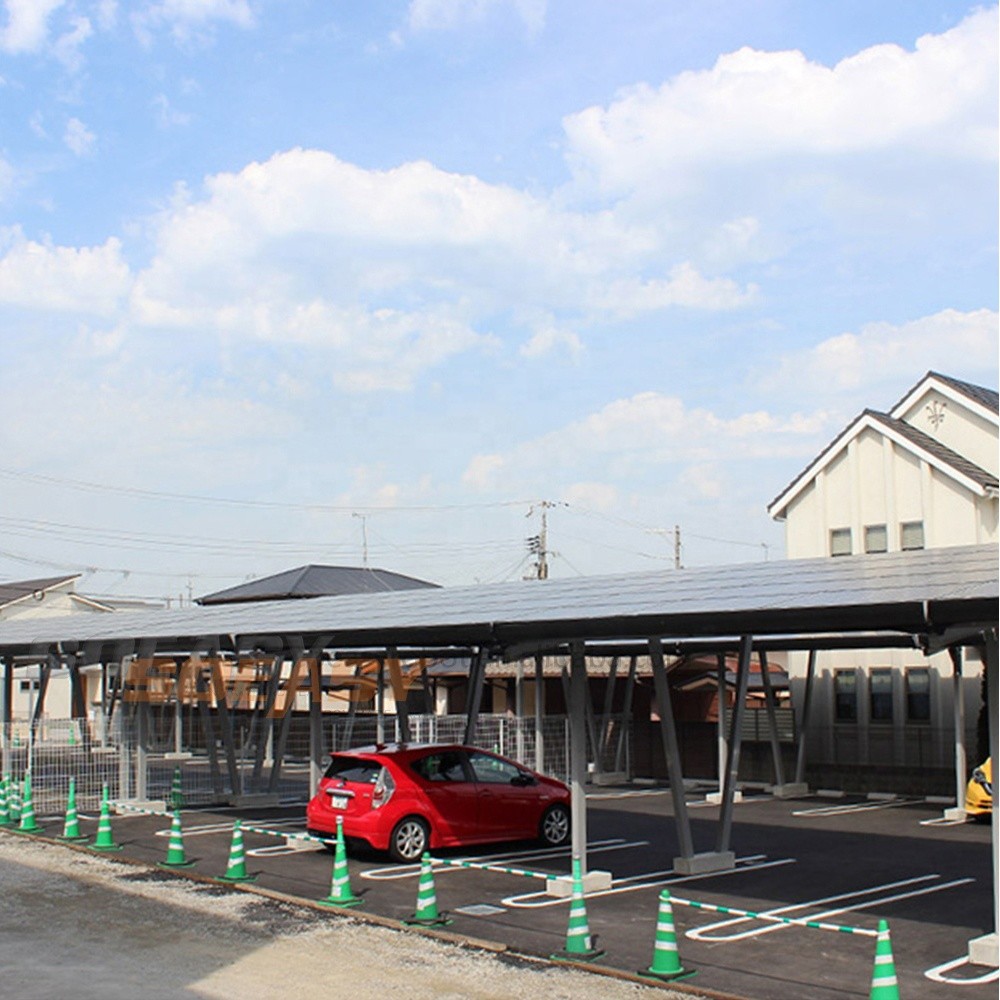

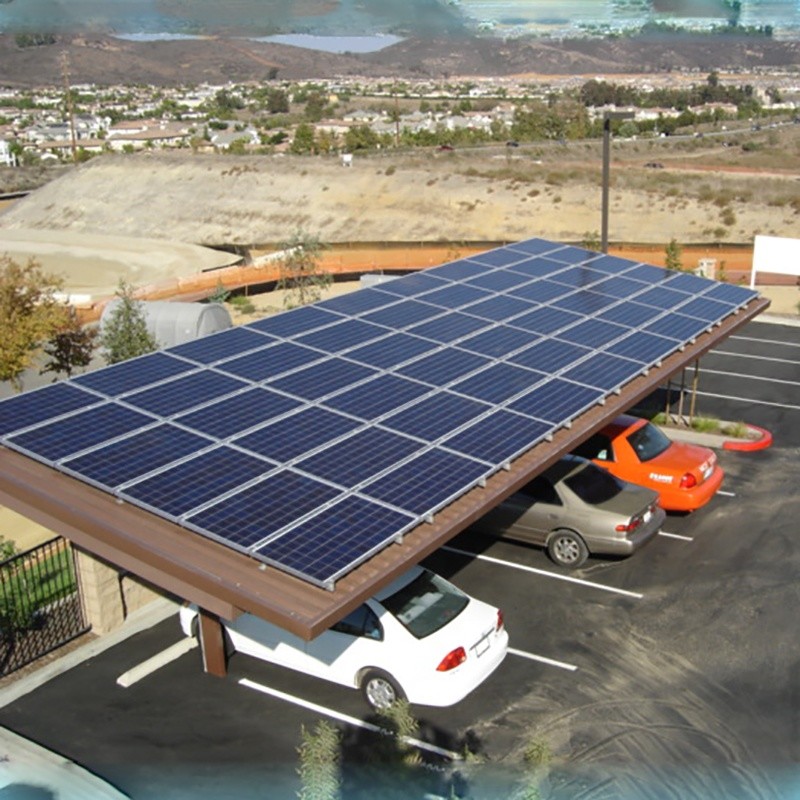

1. Carport Solar Racking Mount System Ground Solar Energy Mounting Structures System Aluminium carport
2. Benefits:
► The Tianfon mounting system compatible with most of the major
framed and frameless PV modules on the market.
► Products were designed by the experienced designers which have
the systematic design, stable structure, mature technology, can
reduce the difficulty of the installation on the most conditions.
► The pre-assembled design of the highest level in factory
simplifies construction site work to the largest degree and
therefore installation is simple and quick. It can effectively
improve construction efficiency, shorten construction period and
reduce construction costs.
► Reduced installatin times due to high pre-fabrication leve;
MInimized assembly time and effort (up to 40%).
► The racking systems can withstand extreme weather condition. The
main supporting components have also been tested to ensure their
structure and bearing capacity.
► The mounting system suitable for various kinds of project,
including residential project, commercial project, utility project
and so on.
3. Technical Parameters :
| Item | Parameter |
| Application | Mountain, Plain, Highland, Desert |
| Installation Angle | Fixed degree,5-45° |
| Wind Load | ≤60m/s |
| Snow Load | ≤1.4KN/m² |
| Applicable Module | Framed or Frameless |
| Material | Q235B,Q345B,Component Aluminum Alloy & Stainless Steel etc, Customized upon requirement. |
| Module Orientation | portrait or landscape |
| Module type | Any type of PV moduels |
| Surface Treatment | Hot Dip Galvanizing & Anodized |
| Warranty | 10 years warranty and 25 years duration |
4. Detailed Introduction:
5. Project Display:
6. Company introduction:
7. Main products:
8. Certificates:
9.Packing and delivery:
► Place of loading: Basic Seaport, China
► Packaging Detail: Export Standard Carton With Pallet, interleaving each profile to protect the surface
► Payment Terms: L/C,D/A,D/P,T/T
► Delivery Detail: Delivery time:7--25 days after receiving customer’s deposits
10. Cooperate customers:
11. Necessary information:
For the solution and quotation, we need some details as the following
| No. | Item | Remarks |
| 1 | Location, Country of the Projects | |
| 2 | What's Total Capacity of solar Project ? | |
| 3 | Max Wind Speed m/s | |
| 4 | Snow Load (KN/㎡) | |
| 5 | which type landform the ground is ? | |
| A. Offshore Sea and island, coast, lake shore and desert area | YES / NO | |
| B. Fields, villages, jungles, hills and sparse houses and suburbs | YES / NO | |
| C. Urban areas with dense clusters of buildings | YES / NO | |
| D. Urban areas with dense buildings and high houses | YES / NO | |
| 6 | Foundation Forms | |
| A. PHC Pile (pretensioned spun high-strength concrete pile) | YES / NO | |
| B. Ramming Pile; | YES / NO | |
| C. Concrete; | YES / NO | |
| D. Bored Pile; | YES / NO | |
| E. Others | ||
| 7 | Layout of Solar Panels | |
| 8 | how many modules per array | |
| 9 | Size of solar panels | |
| 10 | Installation angle of solar panels | |
| 11 | Panel Weight | |
| 12 | Watts per Solar Panel | |
| 13 | Requirements on Main Materials of Structure | |
| 14 | Requirement on the lowest height between solar panels and ground | mm |
| 15 | How many arrays / units | |
| 16 | other information |
|
|
