Henan Tianfon New Energy Tech. Co., Ltd.
7 Years
| Ask Lasest Price | |
| Brand Name : | TIANFON |
| Model Number : | TF-G010 |
| Certification : | SGS,ISO 9001,ISO 14001,OHSAS 18000 |
| Price : | US $0.05-0.18 / Watts |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 100000 Watt/Watts per Week |
| Delivery Time : | within 15-25 work days after receipt deposit |

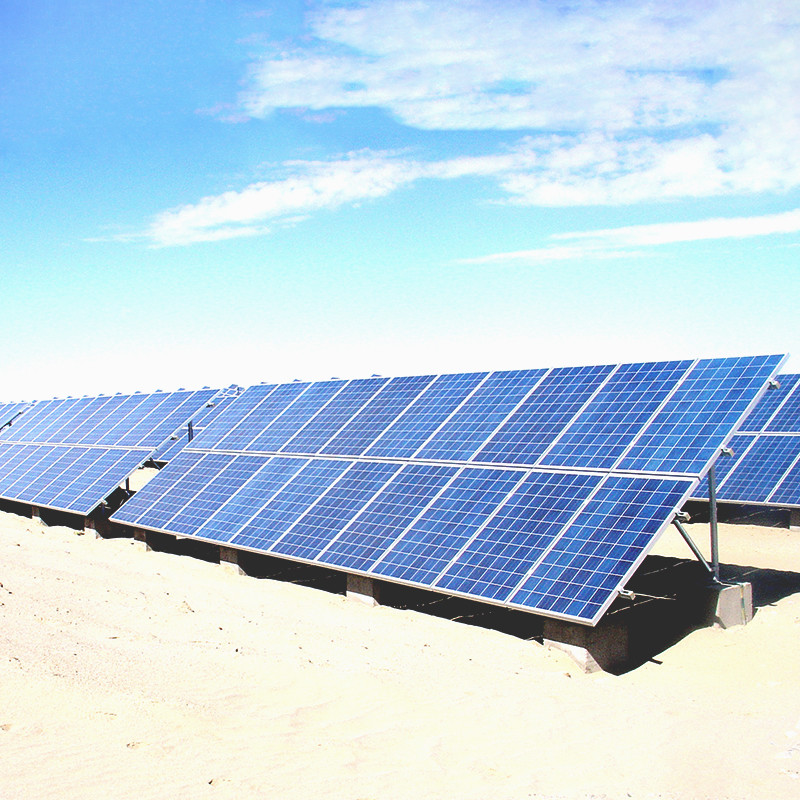

On And Off Grid Solar Mounting Bracket Solar System Ground PV Solar Bracket Solar Structure
Solar photovoltaic bracket is a special bracket designed for placing, installing and fixing solar panels in solar PV power generation system. General materials are aluminum alloy, stainless steel... PV bracket products are divided into ground type, roof type, wall type, portable and so on....
Large PV power generation enterprised usually use the galvanized matal materials. One reason is the low cost, another is large load bearing. before install the engineer can design it according the instruction site environment, make full use of the light energy.
1. Technical Parameters :
| Item | Parameter |
| Application | Mountain, Plain, Highland, Desert |
| Installation Angle | Fixed degree,5-45° |
| Wind Load | ≤60m/s |
| Snow Load | ≤1.4KN/m² |
| Applicable Module | Framed or Frameless |
| Material | Q235B,Q345B,Component Aluminum Alloy & Stainless Steel etc, Customized upon requirement. |
| Module Orientation | portrait or landscape |
| Module type | Any type of PV moduels |
| Surface Treatment | Hot Dip Galvanizing & Anodized |
| Warranty | 10 years warranty and 25 years duration |
2. Detailed Introduction:
3. Project Display:
4. Company Introduction:
5. Main product:
6. Certificates:
7. Packing:
8. Cooperation Partners:
9. Necessary information:
For the solution and quotation, we need some details as the following
| No. | Item | Remarks |
| 1 | Location, Country of the Projects | |
| 2 | What's Total Capacity of solar Project ? | |
| 3 | Max Wind Speed m/s | |
| 4 | Snow Load (KN/㎡) | |
| 5 | which type landform the ground is ? | |
| A. Offshore Sea and island, coast, lake shore and desert area | YES / NO | |
| B. Fields, villages, jungles, hills and sparse houses and suburbs | YES / NO | |
| C. Urban areas with dense clusters of buildings | YES / NO | |
| D. Urban areas with dense buildings and high houses | YES / NO | |
| 6 | Foundation Forms | |
| A. PHC Pile (pretensioned spun high-strength concrete pile) | YES / NO | |
| B. Ramming Pile; | YES / NO | |
| C. Concrete; | YES / NO | |
| D. Bored Pile; | YES / NO | |
| E. Others | ||
| 7 | Layout of Solar Panels | |
| 8 | how many modules per array | |
| 9 | Size of solar panels | |
| 10 | Installation angle of solar panels | |
| 11 | Panel Weight | |
| 12 | Watts per Solar Panel | |
| 13 | Requirements on Main Materials of Structure | |
| 14 | Requirement on the lowest height between solar panels and ground | mm |
| 15 | How many arrays / units | |
| 16 | other information |
|
|
