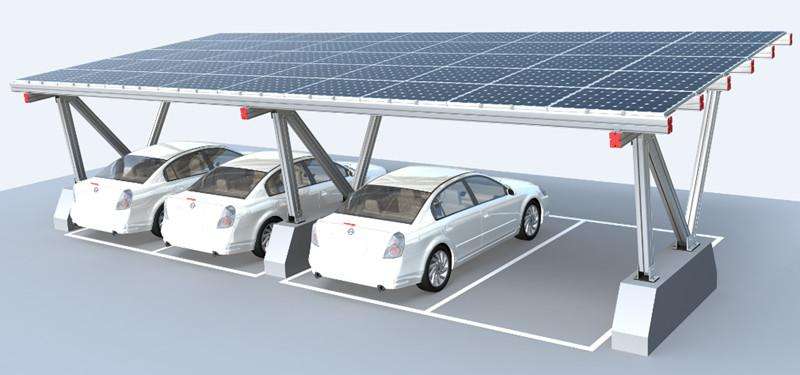

Waterproof Ground Mounting System For Solar Car Shed
PV carport is a new type of power generation method, and it is also a development trend in the future. It is mainly composed of a bracket system, a battery component array, a lighting and control inverter system, a charging device system, and a lightning protection and grounding system.
Unlike a ground mount plant, solar panel carports do not need separate dedicated land, but rather makes use of an existing area and enhances its value.
Most of the photovoltaic carports are of modular design, which can be used alone or in combination.
In addition to generate electricity, a solar carport provides the additional benefit of providing shade for the vehicles parked underneath.
Product feature:
1. Easy, fast and cost-effective installation.
2. Excellent quality material in galvanized steel and SUS 304.
3. Highly corrosion resistant surface treatment.
4. Flexible post spacing withstands different wind&snow loads.
5. Screws and nuts go with every componts needed.
6. 10-year durability warranty
Short Description:
Surface Treatment: Hot-Dipped Galvanization or Anodizing
Rows: 4/5/6
Fastener: Stainless steel SS304
Lowest height: 2.5m
Length of space: 6m
Span(E-W): 5000mm
Standard ground clearance: 2500mm
Width of space: 2.5~3m
Product Parameter :
| Type | Solar mounting |
| Color | Natural or Customized |
| Treatment | Galvanized |
| Structural materials | Hot-Galvanized Steel, Stainless Steel |
| Install Angle | 0-60 degree |
| Ground Clearance | ≥0.15m |
| Max Building Height | 20m |
| Wind load | 130mph(60m/s) |
| Snow Load | 30psf(1.4kN/m2) |
| Applicable Module | Framed, frameless |
| Module Orientation | Portrait, landscape |
| Array Layout | According to the actual situation |
| Warranty | 10 years |
| Duration | More than 25 years |
Installation:
Application:
Packaging & Delivery:
► Delivery Detail: Delivery time:7--25 days after receiving customer’s deposits
► Package: strong and long distance transportation package
► Port: Tianjin, Shanghai, Qingdao
► Payment Terms: L/C,D/A,D/P,T/T
Certificates:
|
|
